Detailinformationen

Material:

HDPE / PE (Polyethylen, eine Art Kunststoff)

Dimension:

400*500*500 mm

IP-Schutzquote:

IP67 wasserdicht

Farbe:

Grau/gelb

Hervorheben:

temporary power units

63 Amp Power Distribution Unit

Sitemate Power Systems

Produkt-Beschreibung

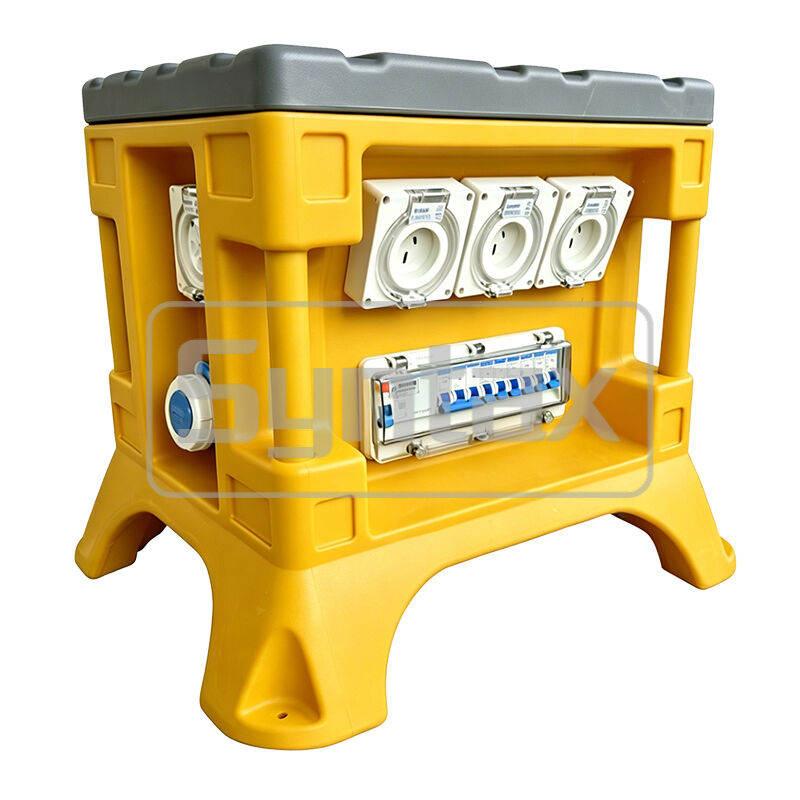

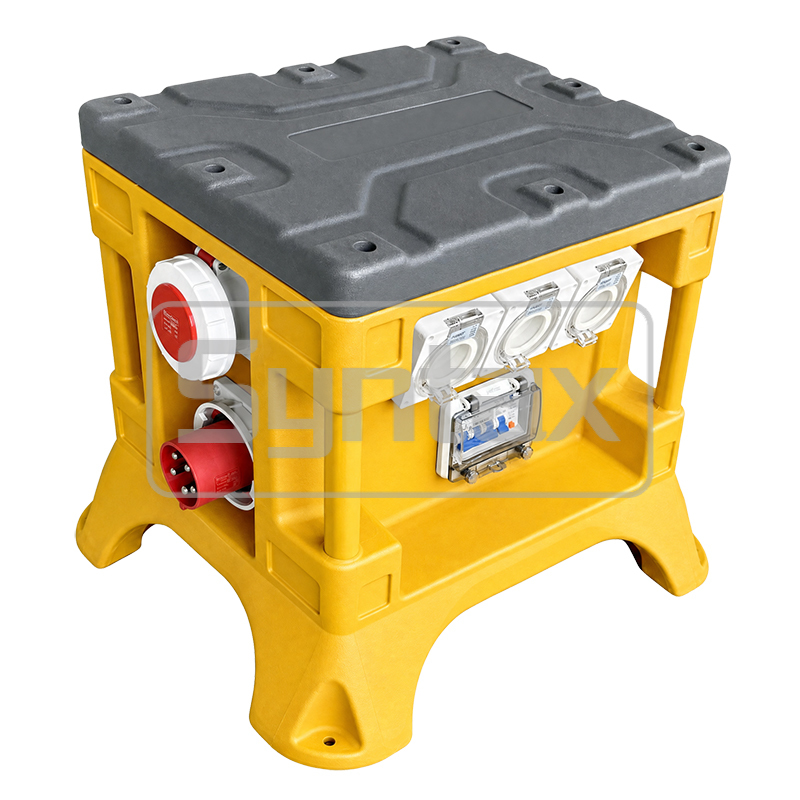

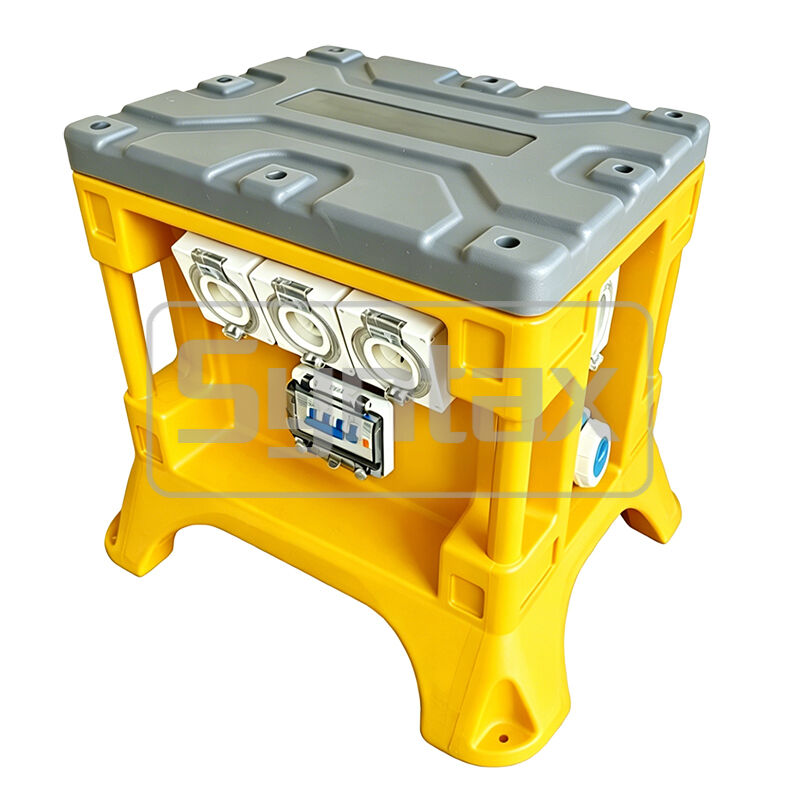

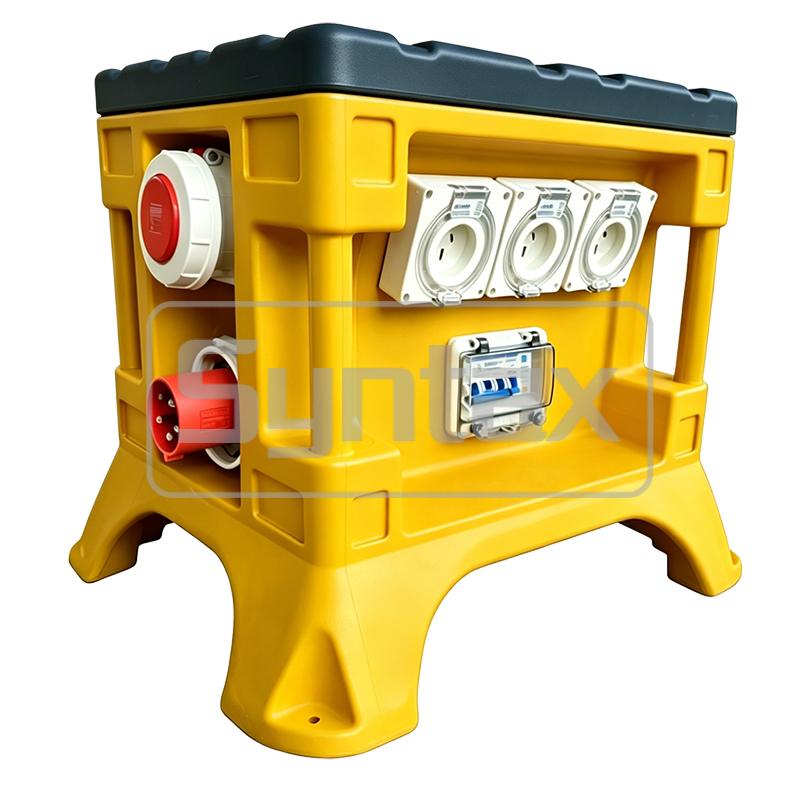

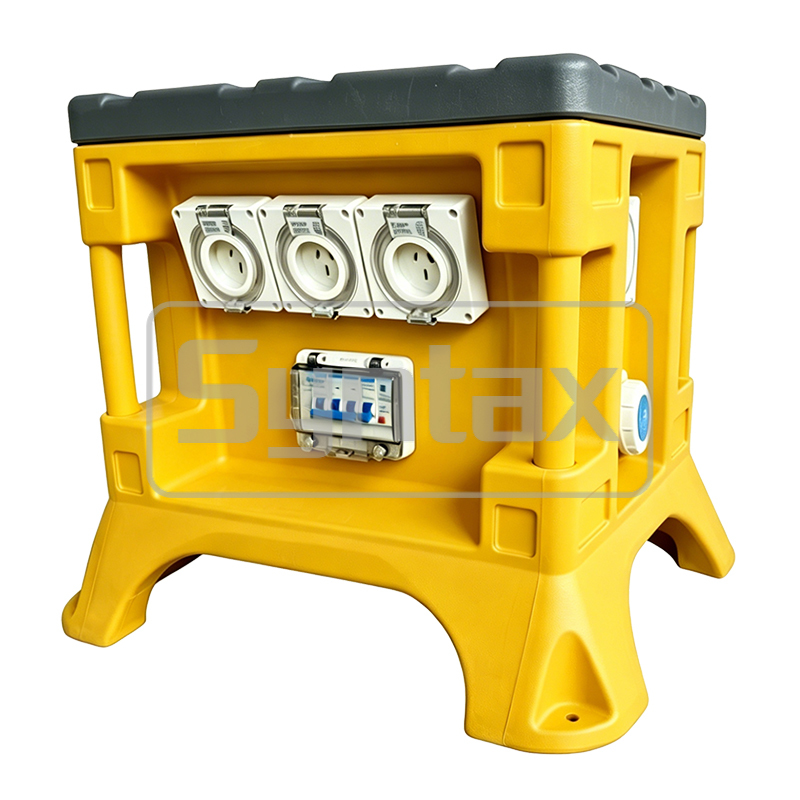

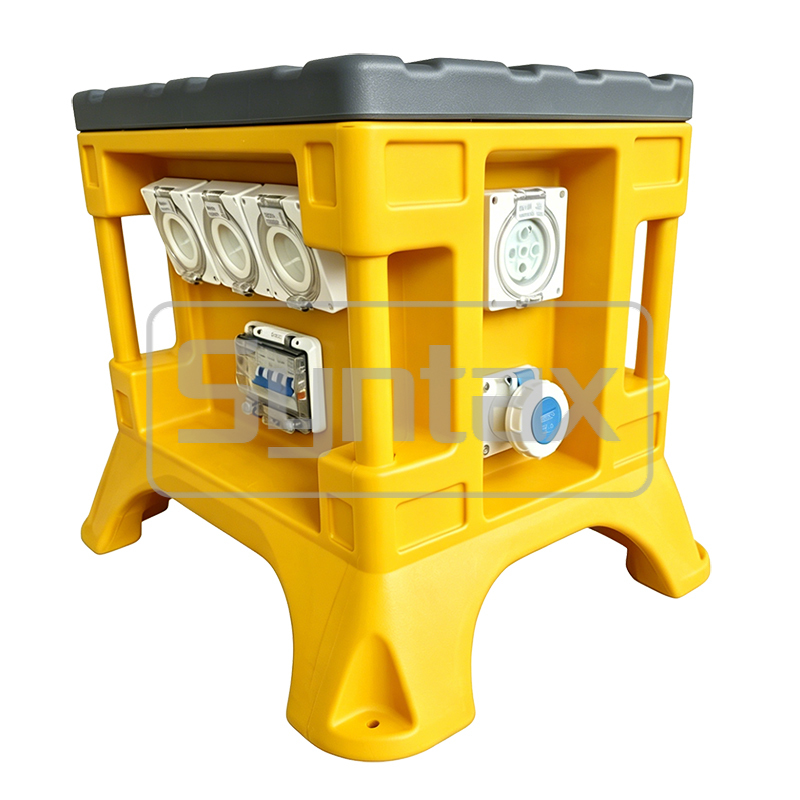

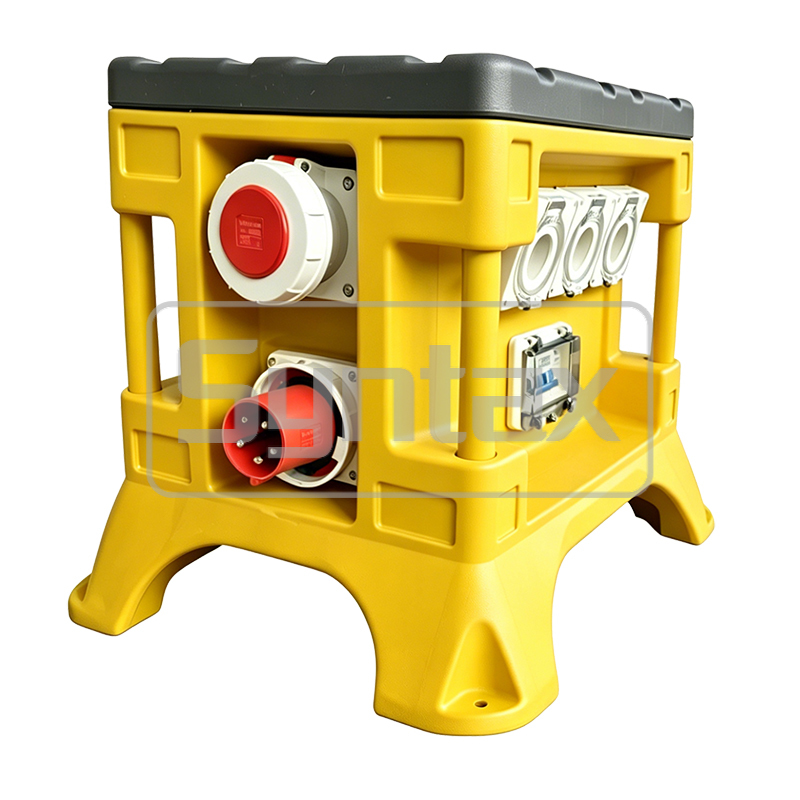

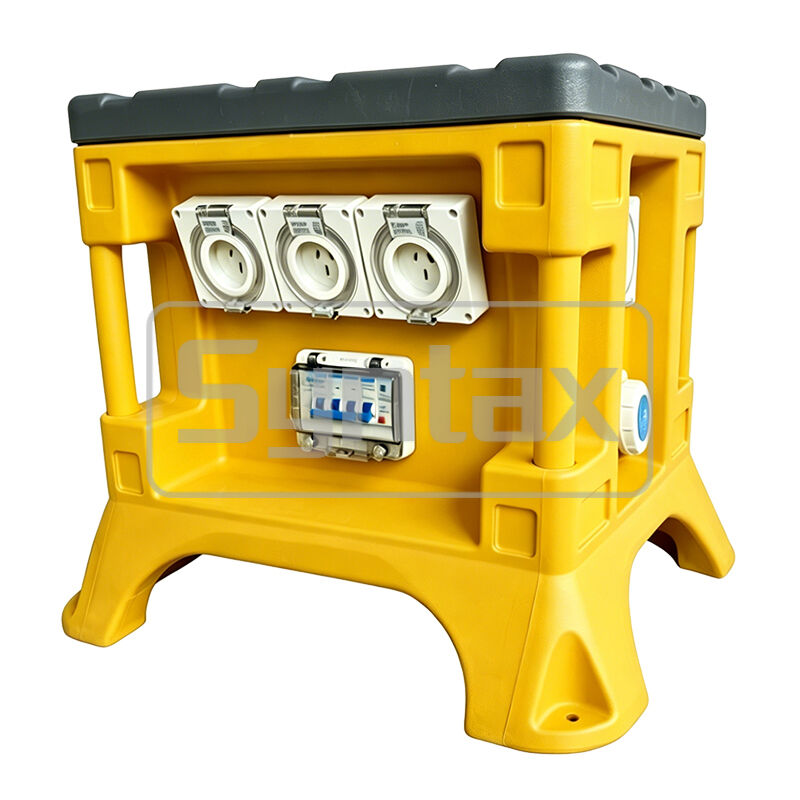

Syntax AU2 5P 63A IP67 Waterproof Sitemate Temporary Power Distribution Units

PE Material Attached With GPOs 40×50×50CM

Technical Specifications

Attribute	Value
Box	AU2 Portable Distribution Board IP67
Color	Grey/Yellow
Dimension of Box	400×500×500 mm
Incoming Main Switch	1 x 5P 63A 400V IP67 CEE Inlet, protected by 1 x 3P 63A MCB
Outgoing 1 Socket & Breaker	1 x 5P 63A 400V IP67 Panel Mounted Socket, Loop through (no protection)
Outgoing 2 Socket & Breaker	1 x 3P 16A 220V IP67 Panel Mounted Sockets, protected by 1 x 1P+N 16A 30mA RCBOs
Outgoing 3 Socket & Breaker	1 x 5P 32A 400V IP66 SAA GPO, protected by 1 x 3P 32A MCB
Outgoing 4 Socket & Breaker	1 x 3P 15A 230V IP66 SAA GPO flat pins, protected by 1 x 1P 20A MCB
Additional Protection	All the GPOs are protected by a 4P 63A 30mA RCD
Brands	Distribution Box by Syntax; Industrial Plugs & Sockets by PowerSyntax; Breakers by CHINT

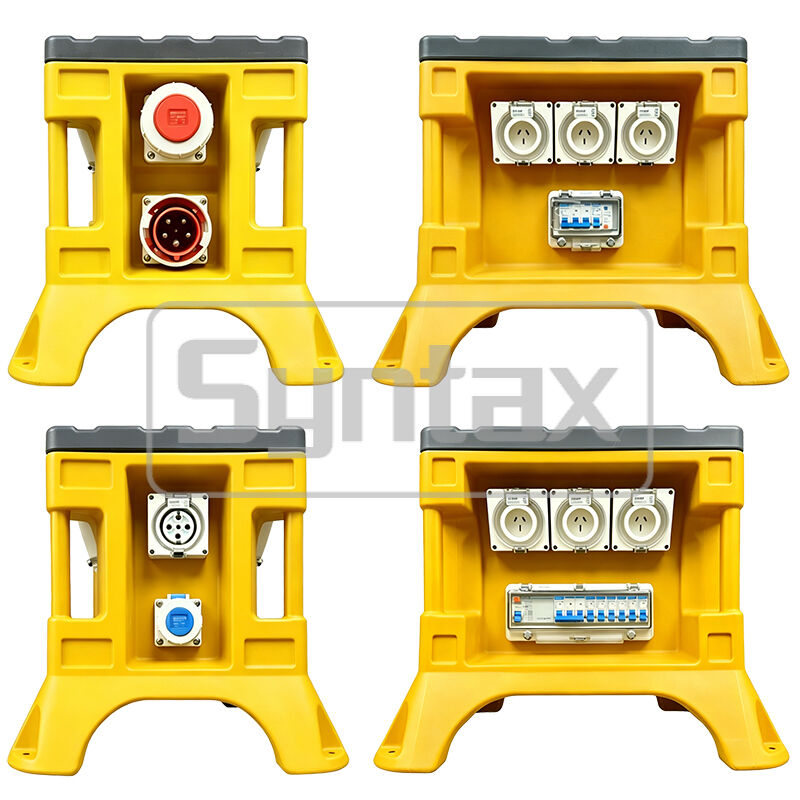

Product Drawings

Key Features & Benefits

Design based on EN 60439-4, IEC 60529 standards
Waterproof and Shockproof design with IP67 rating
Color: Grey/Yellow for high visibility
Material: HDPE/PE (polyethylene) for durability
Stackable Design for easier storage and stable positioning
Operating Temperature: -20℃ to +75℃
Dimension: 400mm × 500mm × 500mm

System Advantages

Quick assembly and dismantling
Safe and reliable connections
Reusable components for cost efficiency
Suitable for indoor and outdoor applications
Robust construction for demanding environments
Easy handling and transportation
Integrated feet for secure stacking
24 Months Warranty on all parts and manufacturing defects

Product Overview

This three-phase 63A custom power distribution board is specially designed for the Australian market. Featuring robust PE construction, IP67 waterproof rating, and comprehensive safety protection, it provides reliable temporary power distribution for construction sites, industrial applications, and outdoor events.

Applications

Tunnel construction Drilling rigs Gravel pits Marine Railway Military Industry Construction site Event technology Strip mining Chemistry Airports Quarries Container terminals Harbor crane connections Large-scale events Market places

Custom Solutions

If standard solutions do not meet your specific requirements, we offer customer-specific solutions built to order. Contact us to discuss your custom power distribution needs.

Größe und Tag:

Herkunftsort:	China
Markenname:	Syntax
Zertifizierung:	EN60439-4, IEC60529, SAA
Modellnummer:	AU2

Min Bestellmenge:	1 Satz
Verpackung Informationen:	Verpackt in Papierkartons
Lieferzeit:	15 Werktage
Zahlungsbedingungen:	L/C, T/T, Western Union
Versorgungsmaterial-Fähigkeit:	3000 Sätze/Monat
